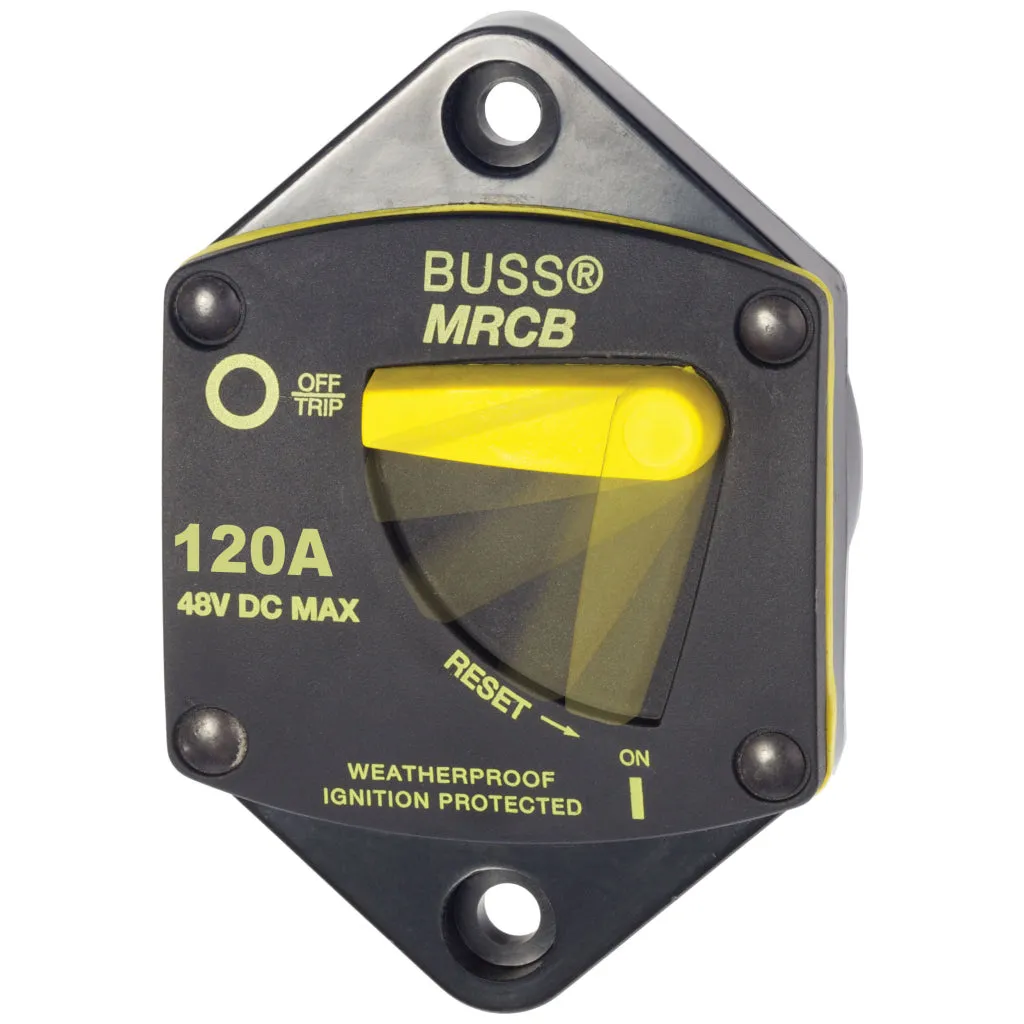

Item# 7046

Features:

• Combines switching and circuit protection into a single device
• Clear, single lever operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Large Clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 M8 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected - Safe for installation aboard gasoline powered boats

Specifications:

• Amperage:120A
• Maximum Voltage:48V DC
• Mounting:Panel Mount
• Circuit Breaker Type: Thermally responsive Bi-metal blade
• Terminal Stud Torque:75 in-lb (8.47 Nm)
• Interrupt Capacity: 5000A 12V DC
• 3000A 24V DC
• 1500A 42V DC
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Case Material:Thermoset Polyester
• Circuit Breaker Class:Type III - switchable/manual reset - trip free
• Mounting Hole:Accept 10 (M5) Screw
• Terminal Stud Size:5/16" - 18
• Weight:0.50lb (0.23 kg)
