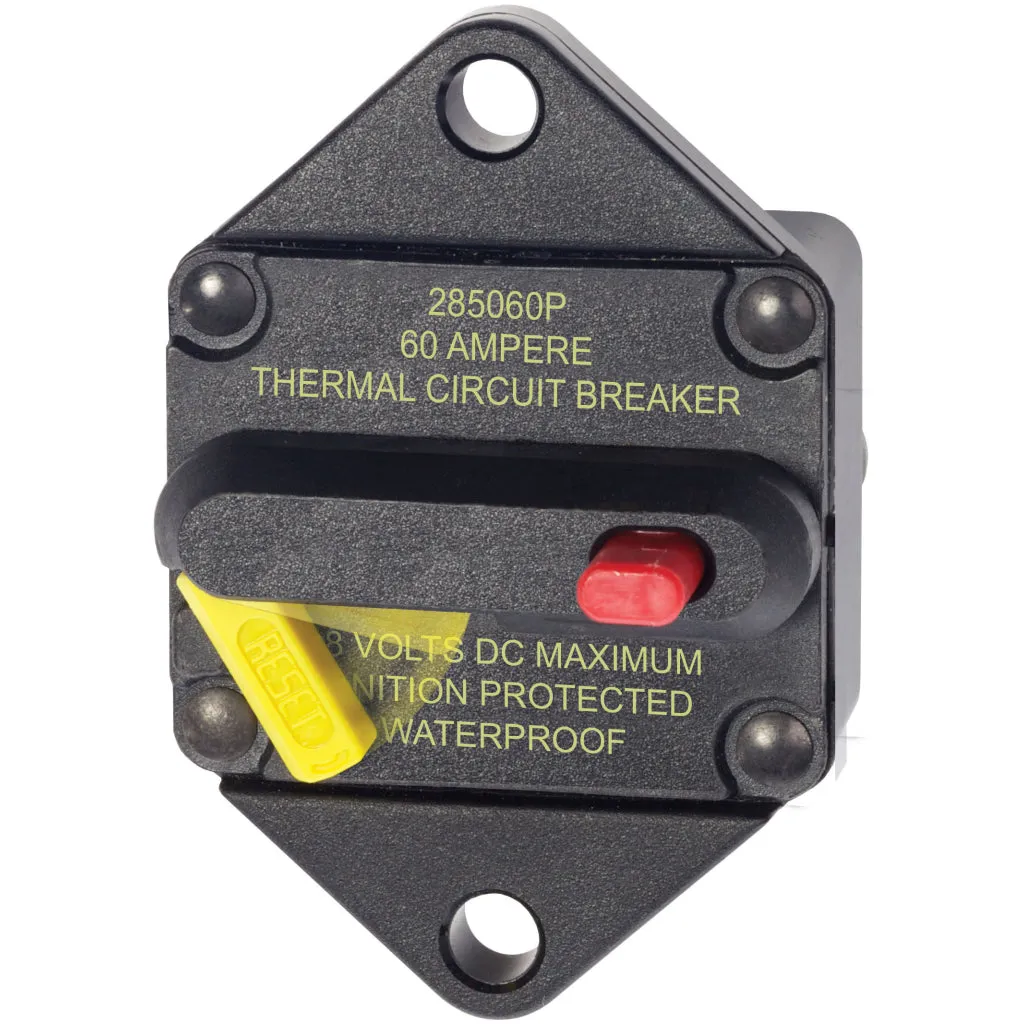

Item# 7084

Features:

• Drop in replacement for 185-Series Circuit Breakers
• Visible reset lever shows open condition
• Ignition protected - Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
• Weather Resistant
• Combines switching and circuit breaker function into one unit
• "Trip Free" - cannot be held closed after trip

Specifications:

• Amperage:60A
• Maximum Voltage:48V DC
• Mounting:Panel Mount
• Circuit Breaker Type: Thermally responsive Bi-metal blade
• Terminal Stud Torque:50 in-lb (5.65 Nm)
• Interrupt Capacity: 3000A 48V
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Circuit Breaker Class:Type III - switchable/manual reset - trip free
• Terminal Stud:M6 (accepts 1/4" Ring Terminal)
• Weight:0.50lb (0.23 kg)
